FX3 Full-frame Cinema Line camera

Model: ILME-FX3
RM 18,999.00
1

1. Prices indicated refer to Suggested Retail Price and may change from time to time without prior notice.

Gifts: 1TB Transcend Portable SSD
  • Overview

    In service of cinematic expression



    Full-frame image capture even in dim light

    The FX3's full-frame image sensor is coupled with innovative light-gathering techniques to let you capture clear and usable images even in dim light. The standard ISO sensitivity of 80-102400 for movies is expandable all the way up to 409600.


    Wide dynamic range, wider creative expression

    The FX3 offers an exceptional 15+ stops of dynamic range to handle settings ranging from well-lit interiors and outdoors in mid-day to morning and evening shots. Capture every nuance, and allow for unprecedented cinematic freedom in colour grading.


    Stunning bokeh and full-frame creativity

    Capture the scene in cinematic 4K resolution, with the shallow depth of field, stunning bokeh and cinematic freedom made possible with a full-frame sensor.



    Cinematic colour science of S-Cinetone™

    S-Cinetone colour, developed for Sony’s acclaimed FX9, is the default look on the FX3 for cinematic expression. It's precisely tuned to meet the requirements of today's content creators, with rich colour and natural skin tones that match other Cinema Line cameras without grading.



    4K 120fps with every frame in focus

    Even at high frame rates, detailed 4K imagery is captured thanks to the FX3's high-precision AF and high-speed readout capabilities. Slow and Quick (S&Q) mode gives you full control over the shooting frame rate, for beautiful motion sequences at up to 5x slow motion (with 24p output).


    Example image

    10-bit S-Log3 and HDR recording for smooth gradations

    S-Log3 gamma curve and S-Gamut3.Cine enable shooting with high-quality colour reproduction over a wide dynamic range, and they make it easy to match up footage with shots from other Cinema Line cameras during post-production. In addition, an HLG (Hybrid Log-Gamma) HDR picture profile enables direct HDR (HLG) playback on compatible TVs with no post-production.


    Example image

    16-bit RAW HDMI output

    For demanding post-production workflows, 16-bit RAW output3 is available over HDMI connection to compatible external recorders while XAVC HS 4K, XAVC S 4K, or XAVC S-I 4K, and proxy, files are simultaneously captured in-camera. RAW video output is 4264 x 2408 [16:9] resolution, exceeding DCI-4K resolution


    Illustration

    Enjoy rich detail and realistic colour

    The FX3 is capable of 4K internal recording, 10-bit depth and 4:2:2 colour sampling with All Intra on top of Long-GOP compression. This makes it possible to push your colour grades further while still retaining natural gradation, for true editing freedom.


    Designed for comfortable solo shooting



    Dependable, highly accurate autofocus

    The wide-area AF with intelligent tracking uses focal-plane phase-detection for tenacious subject tracking across almost the entire frame. The Fast Hybrid AF system delivers precise focusing even when shooting at a shallow depth of field and at high frame rates of 120p in 4K (QFHD)


    Sophisticated tracking AF for steady focus

    Sophisticated tracking features keep your subject in steady focus, so you can concentrate on composition. Real-time Eye AF ensures precise focus on the face and eyes, while Real-time Tracking is powered by Sony's unique AI-based subject recognition algorithms.


    Smooth transitions and touch focus control


    The FX3 includes AF Transition Speed in seven settings, to easily create rack focus, and five AF Subject Shift Sensitivity settings, which allows the user to customise how easily AF will switch or stay with the locked-on subject. You can also select the subject you want to focus on simply by touching the LCD monitor.



    Advantages of Sony’s lenses for video shooting

    Learn the four unique advantages of using Sony's E-mount lens for video shooting. The combination of Sony's lenses and cameras will enhance your video creation experience


    Product image

    High-mobility performance wherever you go

    With its compact size and light weight, the FX3 is designed for high mobility. The attached handle and cage-free accessory mounting holes make for fast setup, fluid shooting and quick pack-down. The main body and covers are constructed from a lightweight magnesium alloy to enhance durability and performance even in challenging environments.


    Usage image



    Attachable XLR handle

    A handle equipped with an XLR adaptor with two full size XLR terminals can be attached to the Multi Interface (MI) Shoe on the camera for more comfortable and stable camerawork in difficult shooting situations, such as low-position shots.


    Illustration

    In-camera image stabilisation

    Active Mode3 4 5 is an optical in-body 5-axis image stabilisation system that provides increased stabilisation for movie shooting. To preserve image quality, the gyroscope sensor accurately measures camera shake and compensates optically. This makes stable video possible even when shooting hand-held without gimbal use, while walking, and at 4K resolution.

    [1, 2] angular shake (pitch and yaw) [3, 4] shift shake (X and Y axes), [5] rotational shake (roll on Z axis)


    Usage image

    Image stabilisation and easier editing with Catalyst

    Camera-shake metadata is recorded by the built-in gyro, allowing handheld footage to be smoothed out and stabilised in post-production. Using Sony's Catalyst Browse / Catalyst Prepare desktop application6 you can easily balance automated shake-compensation and image-trimming levels. Catalyst can also make effective use of recorded camera-rotation data.


    Expandability and operability for content creators



    Front and rear tally lamps

    Tally lights on the front and rear of the FX3 indicate whether the camera is recording at any given moment. They are clearly visible to both the camera operator and the person performing in front of the camera.

    Vari-angle LCD touch-panel monitor

    The 3.0-type (1.44 million-dot) LCD touch-screen panel features a side-opening design to allow flexible positioning and improved visibility when the camera is mounted on gimbals. Touch-panel support also provides intuitive menu control for many camera settings.

    Essential controls for efficient solo shooting

    In addition to six customisable buttons, frequently used controls are within easy one-handed reach, leaving your other hand free for lens operation or balance. And usability is enhanced by multiple screw holes on the body and handle, allowing accessories to be attached directly.
    Illustration

    Uninterrupted 4K/60p recording

    For uninterrupted 4K/60p2 recording, the FX3 is designed with an innovative heat dissipation system. Heatsink placement, airflow structure and a silent cooling fan work to optimise cooling even during long shoots.

    Product image

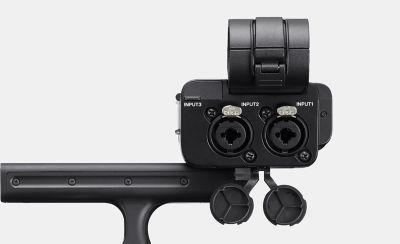

    XLR adaptor and digital input for quality audio

    In addition to the camera's convenient built-in microphone, a variety of professional microphones can be connected externally via the full-size XLR connectors on the handle through a digital audio interface via Multi Interface (MI) Shoe. Three recording formats can be selected, including 24-bit 4-channel. Digital audio recording is also possible by attaching a digital microphone such as the ECM-B1M even when the handle is not used.

    Product image

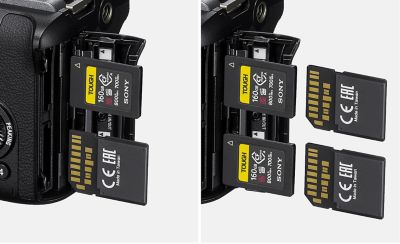

    Dual high-speed media slots

    Designed for next-generation filmmaking requirements, CFexpress Type A cards support high bit-rate recording. The camera's slots are ready for CFexpress Type A as well as conventional SDXC UHS-I and UHS-II cards, and having two identical media slots makes relay or backup shooting possible.

    Example image

    Wireless monitoring and remote control

    Connecting a smartphone or tablet to the camera with the Monitor & Control app enables wireless monitoring, high-precision exposure adjustment, and focus control on a larger screen.

    Usage image

    Remote preview, shooting and streaming

    Either wired or wireless remote shooting is available from a PC, or from a mobile device with Imaging Edge Mobile installed, for more efficient workflows and shooting in challenging environments. Imaging Edge Webcam™ enables high-image-quality online video communication.

    Creators' Cloud logo

    Creators' Cloud platform

    Creators' Cloud is a platform that supports creative work from shooting to production by combining advanced Sony camera technology with cloud-based AI. It's also a place for discovery and collaboration with other creators around the world. Explore web, mobile, and PC-based apps providing efficient solutions that integrate cameras with shooting and production apps and services.



  • Features
    Image sensor with blazingly fast readout speed

    Image sensor with blazingly fast readout speed

    The back-illuminated full-frame Exmor R™ CMOS sensor boasts a blazingly fast data readout speed along with high sensitivity and wide dynamic range. An advanced colour filter array boosts colour reproduction accuracy, while focal plane phase-detection AF enables solid autofocus stability and excellent precision, all of which contribute to outstanding image quality.

    High performance image-processing engine

    High performance image-processing engine

    The BIONZ XR™ image-processing engine is designed for high speed, minimising latency while providing impressive real-time processing capabilities. The engine performs real-time processing of AF, image recognition and image quality adjustments, while also handling data transfer, user interface and other camera operations.

    High sensitivity, wide dynamic range

    High sensitivity, wide dynamic range

    The full-frame sensor enables high sensitivity with low noise throughout the camera's range by optimising the sensor’s output. Capture clear motion even in low light conditions with an impressive ISO expanded range up to 409600. It has an extended dynamic range of 15+ stops, without blown highlights. Together, the camera's high sensitivity and wide dynamic range expand your flexibility in post-production.

    4K High Frame Rate 120fps recording

    4K High Frame Rate 120fps recording

    You can record full-frame 4K (QFHD) at up to 120fps with autofocus thanks to the high-speed readout capabilities of the image sensor and the powerful BIONZ XR processor. Even at high frame rates, 4K (QFHD) images are captured using full-pixel readout without binning, for clear post-produced slow motion (up to 5x slower than real time). The high-precision AF even allows beautiful full-frame bokeh to be achieved during slow motion shooting.

    Acclaimed cinematic colour with S-Cinetone™

    Acclaimed cinematic colour with S-Cinetone™

    The inclusion of Sony’s acclaimed S-Cinetone look, inherited from the development of the FX9, allows cinematic colour to be achieved directly in-camera. S-Cinetone is optimised for natural skin tones and mid-range colours, with gentle highlight roll-off, for impressive subject depiction even without post production grading. [1] Standard (Picture Profile OFF)  [2] S-Cinetone (Picture Profile 11)

    All-Intra internal recording

    All-Intra internal recording

    In addition to Long-GOP inter-frame compression, internal intra-frame (All-Intra) recording is supported. XAVC S-I recording compresses each frame independently at a high bitrate, up to 600Mbps, so is ideal for capturing complex motion, and allowing maximum flexibility and playback performance during post-production. [1] All-Intra (All-I)  [2] Long-GOP  [3] Group of Pictures

    HEVC codec with high compression efficiency

    HEVC codec with high compression efficiency

    XAVC HS format recording, using the MPEG-H HEVC/H.265 codec, roughly doubles the compression efficiency. Compared to a normal 4K XAVC S format, XAVC HS allows for detailed 10-bit video with 4:2:2 colour sampling at comparable or lower data rates, delivering even better image quality as well as manageable file sizes.

    16-bit RAW data output

    Facilitating improved image quality and more flexible and efficient editing in post production, the FX3 supports 16-bit RAW data output to an external recorder via the HDMI Type-A terminal. RAW video output is from a full-frame image sensor with 4264 x 2408 [16:9] resolution, to suit 4K (QFHD) or DCI-4K workflows, with a choice of frame rates (60p/50p/30p/25p/24p).

    S-Log2 and S-Log3 with 10-bit 4:2:2 support

    S-Log2 and S-Log3 with 10-bit 4:2:2 support

    S-Log2 and S-Log3 gamma curves are available, with S-Log3 giving better gradations from shadows to the mid-grey range (18% grey), enabling a dynamic range of up to 15+ stops. For camera matching with other S-Log3 capable Cinema Line cameras, three colour gamut settings (S-Gamut, S-Gamut3, and S-Gamut3.Cine) are available, offering creative flexibility and efficiency during post production.

    Proxy recording for more efficient editing workflow

    Proxy recording for more efficient editing workflow

    Low bit-rate HD proxy files can be recorded simultaneously with higher bit-rate formats such as XAVC S-I 4K, and these smaller proxy files can then be used for editing and previewing prior to final production delivery. This reduces computer load and allows faster and more efficient workflows. Proxy files can be captured in either 10-bit XAVC HS (1920 x 1080) or 8-bit XAVC S (1280 x 720) .

    Expand your vision with Creative Look

    Expand your vision with Creative Look

    Looks emulate pro monitoring and post-production tools inside the camera. The Creative Look presets are available in-camera, and each of these can be used as is, or further customised using individual parameter settings such as hue, colour depth, brightness, contrast, and sharpness. Fine adjustment of preset looks can be made according to the user's preference, and you can also register your favourite settings as a custom look.

    10-bit HLG picture profile

    10-bit HLG picture profile

    An HLG (Hybrid Log-Gamma) HDR picture profile, complete with the wide-gamut BT.2020 colour space, can be used for direct HDR (HLG) playback on compatible TVs. The result is true-to-life imagery close to what the naked eye can see, with detailed shadows and highlights, less blackout and less whiteout, all without the need for colour grading. In particular, 10-bit recordings reproduce a level of fine gradation and detail for extraordinary realism.  [1] High flexibility to fine-tune images as desired (colour grading required) [2] Instant high-quality image (colour grading not required)

    Flexible exposure mode

    Flexible Exposure Mode allows the Auto and Manual modes for iris, shutter speed and ISO to be set independently. The lock function, activated by a short press on the respective custom buttons, locks the related controls to prevent changes if the dial or wheel is accidentally moved. The frequently used iris and ISO can be controlled by the easily accessible front and rear dials as well as by the dial on the top panel.

    Fast Hybrid AF for dependable focus during movie shooting

    Fast Hybrid AF for dependable focus during movie shooting

    Fast Hybrid AF combines focal plane phase-detection AF with contrast-detection AF. This results in highly precise, smooth tracking of fast-moving subjects even over a wide range with a shallow depth of field. AF Transition Speed and AF Subject Shift Sensitivity parameters allow more flexible focus control, as demanded by professional users.

    Fast, easy and reliable Real-time Tracking and Eye AF

    Fast, easy and reliable Real-time Tracking and Eye AF

    Focus control is fast and intuitive, to ensure you have full creative control of the FX3’s powerful AF technology. Real-time Tracking greatly assists during solo shooting by analysing the subject's colour, patterns, and depth. When shooting people, Real-time Eye AF makes movie-making much easier, especially with gimbal-mounted shots and wherever you need to rely on AF.

    Fast, easy touch focus control

    Fast, easy touch focus control

    Touch focus control allows you to precisely specify the point of focus simply by touching the LCD monitor. It's fast, easy, and intuitive to perform rack focusing through touch operation—ensuring you have full creative control of the FX3's powerful AF technology.

    In-body optical image stabilisation for handheld shooting

    In-body optical image stabilisation for handheld shooting

    Relying on a new high-precision stabilisation unit, gyro sensors, and optimised image stabilisation algorithms, the camera's Optical SteadyShot™ Active Mode provides precise optical image compensation, for outstanding results for 4K video recording , even while walking. With this unprecedented level of stabilisation it's possible to shoot with the camera only, taking advantage of the compact size and mobility. [1] Track of camera shake [2] Standard [3] Active

    XLR adaptor and digital input for quality audio

    XLR adaptor and digital input for quality audio

    The handle of the FX3 includes two independent full-size XLR connectors (XLR/TRS combo) to connect external professional microphones through a digital audio interface via the Multi Interface (MI) Shoe. Three recording formats can be selected, including 24-bit 4-channel.

    HDMI Type-A output and monitoring options

    HDMI Type-A output and monitoring options

    With a durable and versatile HDMI Type-A jack, it is possible to simultaneously output video to the camera's LCD monitor, an HDMI-connected external recording or monitoring device.

    Uninterrupted 4K 60p recording

    Uninterrupted 4K 60p recording

    For uninterrupted 4K 60p recording, the FX3 features an innovative heat dissipation structure, including a unique Sony Σ (sigma) shaped graphite-alloy heatsink. A complete internal redesign optimised airflow and placement of heatsinks. When required, a silent cooling fan provides ventilation for continuous recording at full resolution, with intake and exhaust air structurally isolated to maintain strong dust and moisture resistance.

    REC lamps and highlighting during video recording

    REC lamps and highlighting during video recording

    There is one tally light on the front and one on the back, and an LED-illuminated REC button on top that works with the tally lights. In addition, by displaying a red frame on the monitor screen during video recording, even if the screen is difficult to see with a rig or gimbal attached, you can immediately confirm recording status. Light operation can be set on or off for specific applications.

    Customisable buttons for professional movie creators

    Customisable buttons for professional movie creators

    The innovative mirrorless design provides mobility alongside uncompromising professional operability. Frequently used controls are positioned on the top surface, and the many customisable keys and menus deliver streamlined workflows in the field. It’s designed for professional results, even when shooting requires one-handed control or challenging shooting angles and lens handling.

    Various zoom operations tailor your expression

    Various zoom operations tailor your expression

    The zoom lever placed at the top of the grip allows operation of power zoom lenses. Additionally, our innovative Clear Image Zoom provides for practical angle of view options even with minimal equipment. Zoom speeds can also be adjusted to suit everything from quick documentary re-framing to purposeful cinematic zooms.

    Cage-free accessory mounting

    Cage-free accessory mounting

    Five 1/4-20 UNC mounting screw holes allow stable attachment of accessories directly to the camera body, without the need for a cage. Three additional mounting holes are also available on the included XLR handle. The result is a system optimised for incredible mobility and hand-held shooting as well as quick setup for fast-moving productions.

    Touch-driven menu with workflow-based navigation

    Touch-driven menu with workflow-based navigation

    Responding to requests from pro photographers and videographers, the menu structure has been designed to make moviemakers’ work more efficient. Menu tabs are on the left side of the display, while parameter groups and parameters related to the selected tab appear on the right. Up to three levels can be displayed together, making the menu structure more clearly visible. Touch-responsive menu operations enable fast, intuitive control.

    Flexible camera positioning with vari-angle monitor

    Flexible camera positioning with vari-angle monitor

    The FX3 is equipped with a horizontally opening vari-angle LCD monitor that is rotatable for precise framing or interesting angles, regardless of whether you are shooting movies hand-held or gimbal mounted. The screen can even be rotated for direct viewing by the subject or when shooting dramatic low angle shots. The 3.0-type, approximately 1.44 million-dot large touch panel LCD has high visibility and clarity.

    Two CFexpress Type A-compatible media slots

    Two CFexpress Type A-compatible media slots

    The camera's two media slots are compatible with CFexpress Type A cards as well as SDXC/SDHC cards supporting UHS-I and UHS-II speed classes. CFexpress Type A cards are the next standard for compact storage with fast write/read speeds suitable for 4K movie recording at high bit rates. Dual slots enable either relay or simultaneous recording.

    Reliable, durable, and lightweight construction

    Reliable, durable, and lightweight construction

    For high durability and mobility, the main camera chassis, top, front, and rear covers are constructed from lightweight and robust magnesium alloy, with the lens mount secured by six screws for stable attachment of heavy lenses. A filter in front of the image sensor oscillates at an ultrasonic frequency of 70,000 cycles per second to remove dust from the sensor surface.

    Reliable durability and weather resistance in tough situations

    Reliable durability and weather resistance in tough situations

    In response to feedback from working professionals, sealing has been applied to all body seams and around the battery and media compartments, terminal covers and chassis joints. All routes for dust and moisture entry have been examined to ensure reliable operation in challenging environments.

    Power for professional length

    Power for professional length

    For extended shooting sessions, the FX3 is compatible with large-capacity NP-FZ100 batteries. USB-PD (Power Delivery) support also enables fast charging or continuous shooting when connected to a compatible USB Type C® power supply or portable powerbank battery.

    Data communications to support on-site workflow

    Data communications to support on-site workflow

    Wireless 5GHz/2.4GHz LAN connections are supported, as are 1000BASE-T Ethernet network connections via a USB-to-Ethernet adaptor cable connected to the camera's USB Type C® terminal supporting SuperSpeed USB 5Gbps (USB 3.2). Remote shooting can be controlled from a PC with Sony's Imaging Edge Desktop™ application, or from a mobile device with Imaging Edge Mobile™. Wired and wireless FTP transfer for data files as well as remote shooting capabilities support professional workflows during shoots.

    Metadata to facilitate editing with Catalyst

    Metadata to facilitate editing with Catalyst

    Sony’s Catalyst Browse and Prepare software are ideal production partners for the FX3. The FX3 records two types of supplementary metadata: image stabilisation and camera rotation. These can be useful when previewing and preparing to edit in Sony’s free Catalyst Browse or cost-effective Catalyst Prepare desktop applications.

  • Specifications

    General

    CAMERA TYPE

    Interchangeable lens digital camera

    LENS MOUNT

    E-mount

    Size & Weight

    WEIGHT (MAIN UNIT ONLY) (approx.)

    Approx. 715 g (1 lb 9.3 oz) (with battery and memory card included), Approx. 640 g (1 lb 6.6 oz) (body only)

    DIMENSIONS (W X H X D) (INCLUDING SUPPLIED ACCESSORIES) (approx.)

    1.015 kg (2 lb 3.8 oz) (with XLR Handle, battery pack, SD card)

    DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) (approx.)

    Approx. 129.7 mm x 77.8 mm x 84.5 mm (Approx. 5 1/8 x 3 1/8 x 3 3/8 inches) (body without protrusions)

    Power

    POWER CONSUMPTION

    [Movie] Approx. 7.3W (with FE 28-70mm F3.5-5.6 OSS lens attached), [Still image] Approx. 3.4W (with FE 28-70mm F3.5-5.6 OSS lens attached)

    BATTERY OPERATING TIME

    Approx. 95 min (Actual recording, CIPA standard) , Approx. 135 min (Continuous recording, CIPA standard), Approx. 600 shots (LCD monitor) (still images, CIPA standard)

    Operation

    OPERATING TEMPERATURE

    0°C to 40°C, 32°F to 104°F

    STORAGE TEMPERATURE

    -20°C to +60°C, -4°F to +140°F

    Recording Format (Video)

    XAVC HS

    [XAVC HS 4K] 59.94p/50p 200Mbps/150Mbps/100Mbps/75Mbps/45Mbps, MPEG-H HEVC / H.265, 23.98p 100Mbps/100Mbps/50Mbps/50Mbps/30Mbps, MPEG-H HEVC / H.265, 119.88p/100p 280Mbps/200Mbps, MPEG-H HEVC / H.265

    XAVC S

    [XAVC S 4K] 59.94p/50p 200Mbps/150Mbps, MPEG-4 AVC / H.264, 29.97p/25p 140Mbps/100Mbps/60Mbps, MPEG-4 AVC / H.264, 23.98p 100Mbps/100Mbps/60Mbps, MPEG-4 AVC / H.264,[XAVC S HD] 59.94p/50p 50Mbps/50Mbps/25Mbps, MPEG-4 AVC / H.264, 29.97p/25p 50Mbps/50Mbps/16Mbps, MPEG-4 AVC / H.264, 23.98p 50Mbps/50Mbps, MPEG-4 AVC / H.264, 119.88p/100p 100Mbps/60Mbps, MPEG-4 AVC / H.264

    XAVC S-I

    [XAVC S-I 4K] 59.94p/50p 600Mbps/500Mbps, MPEG-4 AVC / H.264, 29.97p/25p 300Mbps/250Mbps, MPEG-4 AVC / H.264, 23.98p 240Mbps, MPEG-4 AVC / H.264, [XAVC S-I HD] 59.94p/50p 222Mbps/185Mbps, MPEG-4 AVC / H.264, 29.97p/25p 111Mbps/93Mbps, MPEG-4 AVC / H.264, 23.98p 100Mbps/100Mbps/60Mbps, MPEG-4 AVC / H.264, 119.88p/100p 280Mbps/200Mbps, MPEG-4 AVC / H.264

    Recording Format (Audio)

    RECORDING FORMAT (AUDIO)

    LPCM 2ch (48kHz 16bit), LPCM 2ch (48kHz 24bit), LPCM 4ch (48kHz 24bit), MPEG-4 AAC-LC 2ch

    Recording Frame Rate

    XAVC HS

    [XAVC HS 4K] 3840x2160/119.88p,100p,59.94P, 50P, 29.97P, 23.98P, 25P

    XAVC S

    [XAVC S 4K] 3840x2160/119.88p,100p,59.94P, 50P, 29.97P, 23.98P, 25P, [XAVC S-I HD] 1920x1080/59.94P, 50P, 29.97P, 23.98P, 25P

    XAVC S-I

    [XAVC S-I 4K] 3840x2160/59.94P, 50P, 29.97P, 23.98P, 25P, [XAVC S-I HD] 1920x1080/59.94P, 50P, 29.97P, 23.98P, 25P

    Recording/Playback Time

    XAVC HS

    [XAVC HS 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 85 minutes, When using CEA-G80T (80GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 110 minutes, When using CEA-G80T (80GB) Approx. 55 minutes, 59.94p/50p 100M When using CEA-G160T (160 GB) Approx. 170 minutes, When using CEA-G80T (80GB) Approx. 80 minutes, 59.94p/50p 75M When using CEA-G160T (160 GB) Approx. 220 minutes, When using CEA-G80T (80GB) Approx. 100 minutes

    XAVC S

    [XAVC S 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 85 minutes, When using CEA-G80T (80GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 110 minutes, When using CEA-G80T (80GB) Approx. 55 minutes, [XAVC S HD] 59.94p/50p 50M When using CEA-G160T (160 GB) Approx. 310 minutes, When using CEA-G80T (80GB) Approx. 150 minutes, 59.94p/50p 25M When using CEA-G160T (160 GB) Approx. 550 minutes, When using CEA-G80T (80GB) Approx. 210 minutes

    XAVC S-I

    [XAVC S-I 4K] XAVC S-I 4K 59.94p/50p When using CEA-G160T (160 GB) Approx. 25 minutes, When using CEA-G80T (80GB) Approx. 10 minutes, [XAVC S-I HD] 59.94p/50p When using CEA-G160T (160 GB) Approx. 75 minutes, When using CEA-G80T (80GB) Approx. 35 minutes

    PROXY VIDEO

    1280 x 720 (Approx. 6Mbps), 1920 x 1080 (Approx. 9Mbps), 1920 x 1080 (Approx. 16Mbps)

    RAW Output

    RAW Output

    HDMI: 4264 x 2408 (60p / 50p / 30p / 25p / 24p), 16bit

    Camera Section

    SENSOR TYPE

    35mm full frame (35.6 x 23.8 mm), Exmor R CMOS sensor

    PIXELS

    Approx. 10.2 megapixels (effective) for movies, Approx. 12.1 megapixels (effective) for Still images, Approx. 12.9 megapixels (total)

    SENSITIVITY

    [Movie] ISO 80-102400 equivalent (ISO numbers up to ISO 409600 can be set as expanded ISO range.), AUTO (ISO 80-12800, selectable lower limit and upper limit), [Still image] ISO 80-102400 (ISO numbers up from ISO 40 to ISO 409600 can be set as expanded ISO range.), AUTO (ISO 80-12800, selectable lower limit and upper limit)

    SHUTTER SPEED

    Movie: 1/8000 to 1/4 (1/3 steps), up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode) Still image: 1/8000 to 30 sec, Bulb

    Slow & Quick Motion

    XAVC HS

    XAVC HS 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps

    XAVC S

    XAVC S 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps

    XAVC S-I

    XAVC S-I 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S-I HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps

    White Balance

    WHITE-BALANCE MODES

    Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Flash / Underwater / Color Temperature (2500 to 9900K) & color filter / Custom

    Gamma

    GAMMA CURVE

    Off / PP1-PP10, Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset

    Latitude

    Latitude

    15+ stop (S-Log3)

    Focus System

    Type

    Fast Hybrid AF (phase-detection AF / contrast-detection AF)

    FOCUS POINT

    [Movie] 627 points, [Still image] 35mm full frame: 759 points (phase-detection AF)

    SENSITIVITY RANGE

    EV-6 to EV20 (ISO100 equivalent with F2.0 lens attached)

    FOCUS MODE

    [Movie] AF-C, MF, [Still image] AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), Manual Focus

    FOCUS AREA

    [Movie] Wide / Zone / Center / Flexible Spot / Expanded Flexible Spot, [Still image] Wide / Zone / Center / Flexible Spot / Expanded Flexible Spot / Tracking

    OTHER FOCUS FEATURES

    Eye AF ([Movie] Human (Right/Left Eye Select), ([Still image] Human (Right/Left Eye Select) / Animal,),Face detection (Face Priority in AF, Face Priority in Multi Metering, Regist. Faces Priority), [Movie] AF Subj. Shift Sensitivity, [Movie] AF Transition Speed, [Still image] Focus Magnifier (35mm full frame: 2.1x / 4.1x, APS-C: 1.5x / 3.0x)

    Exposure Control

    METERING SENSITIVITY

    EV-3 to EV20 (at ISO100 equivalent with F2.0 lens attached)

    EXPOSURE MODES

    [Movie] Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M) / Flexible Exp. Mode, [Still images] AUTO (iAuto), P, A, S, M

    Recording (Still image)

    RECORDING FORMAT

    JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW (Sony ARW 4.0 format compliant)

    IMAGE SIZE

    Image size [3:2] 35mm full frame L: 12M, M: 5.1M, S: 3.0M, APS-C L:5.1M, M: 3.0M, S: 1.3M, Image size [4:3] 35mm full frame L: 11M, M: 4.6M, S: 2.7M, APS-C L: 4.6M, M: 2.7M, S:1.1M Image size, [16:9] 35mm full frame L: 10M, M: 4.3M, S: 2.6M, APS-C L: 4.3M, M: 2.6M, S: 1.1M, Image size [1:1] 35mm full frame L: 8M, M: 3.4M, S: 2.0M, APS-C L: 3.4M, M: 2.0M, S: 0.8M

    Playback

    PLAYBACK FUNCTIONS

    Index view, Folder selection (Date / Still / Movie), Photo capture, 4Ch audio monitoring, Auto Review (stills), Image orientation (stills), Protect (stills), Rating (stills), Display as Group (stills)

    Interface

    AUDIO INPUT

    3.5 mm Stereo minijack, XLR handle: [INPUT1][INPUT2] XLR/TRS-type 3-pin(female) (x2), line/mic/mic +48V selectable, Mic Reference -40 to -60 dBu / [INPUT3] 3.5 mm Stereo minijack)

    USB

    USB Type-C (x1, SuperSpeed USB 5Gbps (USB 3.2) compatible), Multi/Micro USB (x1)

    HEADPHONE OUTPUT

    Yes (3.5 mm Stereo minijack)

    SPEAKER OUTPUT

    Built-in, monaural

    HDMI OUTPUT

    HDMI jack (Type-A), YCbCr 4:2:2 10bit / RGB 8bit

    MULTI INTERFACE SHOE

    With Digital Audio Interface

    Bluetooth

    Bluetooth Standard Ver. 5.0 (2.4GHz band))

    Monitoring

    LCD

    7.5cm (3.0-type) type TFT, approx. 1.44M dots, Opening Angle:Approx. 176 deg., Rotation Angle:Approx. 270 deg.

    Built-in Microphone

    BUILT-IN MICROPHONE

    Built-in, stereo

    Media

    MEDIA TYPE

    CFexpress Type A / SD card (x2), Simult. Rec, Sort, Auto Switch Media, Copy

    File System

    FILE SYSTEM

    FAT12, 16, 32, exFAT

    Zoom

    ZOOM FUNCTION

    Zoom ring rotate, Clear Image Zoom ([Movie] Approx. 1.5x (4K), Approx. 2x (HD) [Still image] Approx. 2x ), Digital zoom ([Movie] 35mm full frame: approx. 4x, APS-C: approx. 4x, [Still image] 35mm full frame: L: approx. 4x, M: approx. 6.1x, S: approx. 8x, APS-C: L: approx. 4x, M:approx. 5.2x, S: approx. 8x), Smart zoom ([Still image] 35mm full frame: M: approx. 1.5x, S: approx. 2x, APS-C: M:approx. 1.3x, S: approx. 2x)

    Still image function

    SHUTTER

    Mechanical shutter / Electronic shutter

    DRIVE MODES

    Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable), Self-timer, Self-timer (Cont.), Bracket: Single, Bracket: Cont., White Balance bracket, DRO bracket

    CONTINUOUS SHOOTING SPEED

    Hi+: 10 fps, Hi: 8 fps, Mid: 6 fps, Lo: 3 fps

    NOISE REDUCTION

    Long exposure NR: On/Off, available at shutter speeds longer than 1 sec., High ISO NR: Normal / Low / Off

    FLASH CONTROL

    Sony α System Flash compatible with Multi Interface Shoe, attach the shoe adaptor for flash compatible with Auto-lock accessory shoe, Flash sync speed 1/125 sec.

    OTHER STILL IMAGE FUNCTION

    Electronic Front Shutter Curtain, Silent Shooting, Anti-flicker Shoot

    Image Stabilization

    Type

    Image Sensor-Shift mechanism with 5-axis compensation (Compensation depends on lens specifications)

    MODE

    [Movie] Active / Standard / Off, [Still image] On / Off

    COMPENSATION EFFECT (STILL IMAGES)

    5.5 stops (based on CIPA standard. Pitch/yaw shake only. With Planar T* FE 50mm F1.4 ZA lens mounted. Long exposure NR off.)

    Custom Function

    CUSTOM FUNCTION

    Custom key settings, My Menu, My Dial Settings

    Lens Compensation

    LENS COMPENSATION

    Peripheral Shading, Chromatic Aberration, Distortion

    Wi-Fi/NFC

    SUPPORTED FORMAT

    IEEE 802.11a/b/g/n/ac

    FREQUENCY BAND

    2.4GHz band/5GHz band

    SECURITY

    WEP/WPA-PSK/WPA2-PSK

    NFC

    NFC Forum Type 3 Tag compliant

    FTP Transfer

    FTP Transfer

    FTP Transfer Func. (Wired LAN (USB-LAN), USB Tethering, Wi-Fi)

    Supplied Accessories

    SUPPLIED ACCESSORIES

    Rechargeable Battery NP-FZ100, Battery Charger BC-QZ1, Power cord, XLR handle unit, Accessory shoe kit, Body cap, Accessory shoe cap, Handle shoe cap, USB-A to USB-C cable (USB 3.2)

  • Support
  • Overview
    • Overview

      In service of cinematic expression



      Full-frame image capture even in dim light

      The FX3's full-frame image sensor is coupled with innovative light-gathering techniques to let you capture clear and usable images even in dim light. The standard ISO sensitivity of 80-102400 for movies is expandable all the way up to 409600.


      Wide dynamic range, wider creative expression

      The FX3 offers an exceptional 15+ stops of dynamic range to handle settings ranging from well-lit interiors and outdoors in mid-day to morning and evening shots. Capture every nuance, and allow for unprecedented cinematic freedom in colour grading.


      Stunning bokeh and full-frame creativity

      Capture the scene in cinematic 4K resolution, with the shallow depth of field, stunning bokeh and cinematic freedom made possible with a full-frame sensor.



      Cinematic colour science of S-Cinetone™

      S-Cinetone colour, developed for Sony’s acclaimed FX9, is the default look on the FX3 for cinematic expression. It's precisely tuned to meet the requirements of today's content creators, with rich colour and natural skin tones that match other Cinema Line cameras without grading.



      4K 120fps with every frame in focus

      Even at high frame rates, detailed 4K imagery is captured thanks to the FX3's high-precision AF and high-speed readout capabilities. Slow and Quick (S&Q) mode gives you full control over the shooting frame rate, for beautiful motion sequences at up to 5x slow motion (with 24p output).


      Example image

      10-bit S-Log3 and HDR recording for smooth gradations

      S-Log3 gamma curve and S-Gamut3.Cine enable shooting with high-quality colour reproduction over a wide dynamic range, and they make it easy to match up footage with shots from other Cinema Line cameras during post-production. In addition, an HLG (Hybrid Log-Gamma) HDR picture profile enables direct HDR (HLG) playback on compatible TVs with no post-production.


      Example image

      16-bit RAW HDMI output

      For demanding post-production workflows, 16-bit RAW output3 is available over HDMI connection to compatible external recorders while XAVC HS 4K, XAVC S 4K, or XAVC S-I 4K, and proxy, files are simultaneously captured in-camera. RAW video output is 4264 x 2408 [16:9] resolution, exceeding DCI-4K resolution


      Illustration

      Enjoy rich detail and realistic colour

      The FX3 is capable of 4K internal recording, 10-bit depth and 4:2:2 colour sampling with All Intra on top of Long-GOP compression. This makes it possible to push your colour grades further while still retaining natural gradation, for true editing freedom.


      Designed for comfortable solo shooting



      Dependable, highly accurate autofocus

      The wide-area AF with intelligent tracking uses focal-plane phase-detection for tenacious subject tracking across almost the entire frame. The Fast Hybrid AF system delivers precise focusing even when shooting at a shallow depth of field and at high frame rates of 120p in 4K (QFHD)


      Sophisticated tracking AF for steady focus

      Sophisticated tracking features keep your subject in steady focus, so you can concentrate on composition. Real-time Eye AF ensures precise focus on the face and eyes, while Real-time Tracking is powered by Sony's unique AI-based subject recognition algorithms.


      Smooth transitions and touch focus control


      The FX3 includes AF Transition Speed in seven settings, to easily create rack focus, and five AF Subject Shift Sensitivity settings, which allows the user to customise how easily AF will switch or stay with the locked-on subject. You can also select the subject you want to focus on simply by touching the LCD monitor.



      Advantages of Sony’s lenses for video shooting

      Learn the four unique advantages of using Sony's E-mount lens for video shooting. The combination of Sony's lenses and cameras will enhance your video creation experience


      Product image

      High-mobility performance wherever you go

      With its compact size and light weight, the FX3 is designed for high mobility. The attached handle and cage-free accessory mounting holes make for fast setup, fluid shooting and quick pack-down. The main body and covers are constructed from a lightweight magnesium alloy to enhance durability and performance even in challenging environments.


      Usage image



      Attachable XLR handle

      A handle equipped with an XLR adaptor with two full size XLR terminals can be attached to the Multi Interface (MI) Shoe on the camera for more comfortable and stable camerawork in difficult shooting situations, such as low-position shots.


      Illustration

      In-camera image stabilisation

      Active Mode3 4 5 is an optical in-body 5-axis image stabilisation system that provides increased stabilisation for movie shooting. To preserve image quality, the gyroscope sensor accurately measures camera shake and compensates optically. This makes stable video possible even when shooting hand-held without gimbal use, while walking, and at 4K resolution.

      [1, 2] angular shake (pitch and yaw) [3, 4] shift shake (X and Y axes), [5] rotational shake (roll on Z axis)


      Usage image

      Image stabilisation and easier editing with Catalyst

      Camera-shake metadata is recorded by the built-in gyro, allowing handheld footage to be smoothed out and stabilised in post-production. Using Sony's Catalyst Browse / Catalyst Prepare desktop application6 you can easily balance automated shake-compensation and image-trimming levels. Catalyst can also make effective use of recorded camera-rotation data.


      Expandability and operability for content creators



      Front and rear tally lamps

      Tally lights on the front and rear of the FX3 indicate whether the camera is recording at any given moment. They are clearly visible to both the camera operator and the person performing in front of the camera.

      Vari-angle LCD touch-panel monitor

      The 3.0-type (1.44 million-dot) LCD touch-screen panel features a side-opening design to allow flexible positioning and improved visibility when the camera is mounted on gimbals. Touch-panel support also provides intuitive menu control for many camera settings.

      Essential controls for efficient solo shooting

      In addition to six customisable buttons, frequently used controls are within easy one-handed reach, leaving your other hand free for lens operation or balance. And usability is enhanced by multiple screw holes on the body and handle, allowing accessories to be attached directly.
      Illustration

      Uninterrupted 4K/60p recording

      For uninterrupted 4K/60p2 recording, the FX3 is designed with an innovative heat dissipation system. Heatsink placement, airflow structure and a silent cooling fan work to optimise cooling even during long shoots.

      Product image

      XLR adaptor and digital input for quality audio

      In addition to the camera's convenient built-in microphone, a variety of professional microphones can be connected externally via the full-size XLR connectors on the handle through a digital audio interface via Multi Interface (MI) Shoe. Three recording formats can be selected, including 24-bit 4-channel. Digital audio recording is also possible by attaching a digital microphone such as the ECM-B1M even when the handle is not used.

      Product image

      Dual high-speed media slots

      Designed for next-generation filmmaking requirements, CFexpress Type A cards support high bit-rate recording. The camera's slots are ready for CFexpress Type A as well as conventional SDXC UHS-I and UHS-II cards, and having two identical media slots makes relay or backup shooting possible.

      Example image

      Wireless monitoring and remote control

      Connecting a smartphone or tablet to the camera with the Monitor & Control app enables wireless monitoring, high-precision exposure adjustment, and focus control on a larger screen.

      Usage image

      Remote preview, shooting and streaming

      Either wired or wireless remote shooting is available from a PC, or from a mobile device with Imaging Edge Mobile installed, for more efficient workflows and shooting in challenging environments. Imaging Edge Webcam™ enables high-image-quality online video communication.

      Creators' Cloud logo

      Creators' Cloud platform

      Creators' Cloud is a platform that supports creative work from shooting to production by combining advanced Sony camera technology with cloud-based AI. It's also a place for discovery and collaboration with other creators around the world. Explore web, mobile, and PC-based apps providing efficient solutions that integrate cameras with shooting and production apps and services.



  • features
    • Features
      Image sensor with blazingly fast readout speed

      Image sensor with blazingly fast readout speed

      The back-illuminated full-frame Exmor R™ CMOS sensor boasts a blazingly fast data readout speed along with high sensitivity and wide dynamic range. An advanced colour filter array boosts colour reproduction accuracy, while focal plane phase-detection AF enables solid autofocus stability and excellent precision, all of which contribute to outstanding image quality.

      High performance image-processing engine

      High performance image-processing engine

      The BIONZ XR™ image-processing engine is designed for high speed, minimising latency while providing impressive real-time processing capabilities. The engine performs real-time processing of AF, image recognition and image quality adjustments, while also handling data transfer, user interface and other camera operations.

      High sensitivity, wide dynamic range

      High sensitivity, wide dynamic range

      The full-frame sensor enables high sensitivity with low noise throughout the camera's range by optimising the sensor’s output. Capture clear motion even in low light conditions with an impressive ISO expanded range up to 409600. It has an extended dynamic range of 15+ stops, without blown highlights. Together, the camera's high sensitivity and wide dynamic range expand your flexibility in post-production.

      4K High Frame Rate 120fps recording

      4K High Frame Rate 120fps recording

      You can record full-frame 4K (QFHD) at up to 120fps with autofocus thanks to the high-speed readout capabilities of the image sensor and the powerful BIONZ XR processor. Even at high frame rates, 4K (QFHD) images are captured using full-pixel readout without binning, for clear post-produced slow motion (up to 5x slower than real time). The high-precision AF even allows beautiful full-frame bokeh to be achieved during slow motion shooting.

      Acclaimed cinematic colour with S-Cinetone™

      Acclaimed cinematic colour with S-Cinetone™

      The inclusion of Sony’s acclaimed S-Cinetone look, inherited from the development of the FX9, allows cinematic colour to be achieved directly in-camera. S-Cinetone is optimised for natural skin tones and mid-range colours, with gentle highlight roll-off, for impressive subject depiction even without post production grading. [1] Standard (Picture Profile OFF)  [2] S-Cinetone (Picture Profile 11)

      All-Intra internal recording

      All-Intra internal recording

      In addition to Long-GOP inter-frame compression, internal intra-frame (All-Intra) recording is supported. XAVC S-I recording compresses each frame independently at a high bitrate, up to 600Mbps, so is ideal for capturing complex motion, and allowing maximum flexibility and playback performance during post-production. [1] All-Intra (All-I)  [2] Long-GOP  [3] Group of Pictures

      HEVC codec with high compression efficiency

      HEVC codec with high compression efficiency

      XAVC HS format recording, using the MPEG-H HEVC/H.265 codec, roughly doubles the compression efficiency. Compared to a normal 4K XAVC S format, XAVC HS allows for detailed 10-bit video with 4:2:2 colour sampling at comparable or lower data rates, delivering even better image quality as well as manageable file sizes.

      16-bit RAW data output

      Facilitating improved image quality and more flexible and efficient editing in post production, the FX3 supports 16-bit RAW data output to an external recorder via the HDMI Type-A terminal. RAW video output is from a full-frame image sensor with 4264 x 2408 [16:9] resolution, to suit 4K (QFHD) or DCI-4K workflows, with a choice of frame rates (60p/50p/30p/25p/24p).

      S-Log2 and S-Log3 with 10-bit 4:2:2 support

      S-Log2 and S-Log3 with 10-bit 4:2:2 support

      S-Log2 and S-Log3 gamma curves are available, with S-Log3 giving better gradations from shadows to the mid-grey range (18% grey), enabling a dynamic range of up to 15+ stops. For camera matching with other S-Log3 capable Cinema Line cameras, three colour gamut settings (S-Gamut, S-Gamut3, and S-Gamut3.Cine) are available, offering creative flexibility and efficiency during post production.

      Proxy recording for more efficient editing workflow

      Proxy recording for more efficient editing workflow

      Low bit-rate HD proxy files can be recorded simultaneously with higher bit-rate formats such as XAVC S-I 4K, and these smaller proxy files can then be used for editing and previewing prior to final production delivery. This reduces computer load and allows faster and more efficient workflows. Proxy files can be captured in either 10-bit XAVC HS (1920 x 1080) or 8-bit XAVC S (1280 x 720) .

      Expand your vision with Creative Look

      Expand your vision with Creative Look

      Looks emulate pro monitoring and post-production tools inside the camera. The Creative Look presets are available in-camera, and each of these can be used as is, or further customised using individual parameter settings such as hue, colour depth, brightness, contrast, and sharpness. Fine adjustment of preset looks can be made according to the user's preference, and you can also register your favourite settings as a custom look.

      10-bit HLG picture profile

      10-bit HLG picture profile

      An HLG (Hybrid Log-Gamma) HDR picture profile, complete with the wide-gamut BT.2020 colour space, can be used for direct HDR (HLG) playback on compatible TVs. The result is true-to-life imagery close to what the naked eye can see, with detailed shadows and highlights, less blackout and less whiteout, all without the need for colour grading. In particular, 10-bit recordings reproduce a level of fine gradation and detail for extraordinary realism.  [1] High flexibility to fine-tune images as desired (colour grading required) [2] Instant high-quality image (colour grading not required)

      Flexible exposure mode

      Flexible Exposure Mode allows the Auto and Manual modes for iris, shutter speed and ISO to be set independently. The lock function, activated by a short press on the respective custom buttons, locks the related controls to prevent changes if the dial or wheel is accidentally moved. The frequently used iris and ISO can be controlled by the easily accessible front and rear dials as well as by the dial on the top panel.

      Fast Hybrid AF for dependable focus during movie shooting

      Fast Hybrid AF for dependable focus during movie shooting

      Fast Hybrid AF combines focal plane phase-detection AF with contrast-detection AF. This results in highly precise, smooth tracking of fast-moving subjects even over a wide range with a shallow depth of field. AF Transition Speed and AF Subject Shift Sensitivity parameters allow more flexible focus control, as demanded by professional users.

      Fast, easy and reliable Real-time Tracking and Eye AF

      Fast, easy and reliable Real-time Tracking and Eye AF

      Focus control is fast and intuitive, to ensure you have full creative control of the FX3’s powerful AF technology. Real-time Tracking greatly assists during solo shooting by analysing the subject's colour, patterns, and depth. When shooting people, Real-time Eye AF makes movie-making much easier, especially with gimbal-mounted shots and wherever you need to rely on AF.

      Fast, easy touch focus control

      Fast, easy touch focus control

      Touch focus control allows you to precisely specify the point of focus simply by touching the LCD monitor. It's fast, easy, and intuitive to perform rack focusing through touch operation—ensuring you have full creative control of the FX3's powerful AF technology.

      In-body optical image stabilisation for handheld shooting

      In-body optical image stabilisation for handheld shooting

      Relying on a new high-precision stabilisation unit, gyro sensors, and optimised image stabilisation algorithms, the camera's Optical SteadyShot™ Active Mode provides precise optical image compensation, for outstanding results for 4K video recording , even while walking. With this unprecedented level of stabilisation it's possible to shoot with the camera only, taking advantage of the compact size and mobility. [1] Track of camera shake [2] Standard [3] Active

      XLR adaptor and digital input for quality audio

      XLR adaptor and digital input for quality audio

      The handle of the FX3 includes two independent full-size XLR connectors (XLR/TRS combo) to connect external professional microphones through a digital audio interface via the Multi Interface (MI) Shoe. Three recording formats can be selected, including 24-bit 4-channel.

      HDMI Type-A output and monitoring options

      HDMI Type-A output and monitoring options

      With a durable and versatile HDMI Type-A jack, it is possible to simultaneously output video to the camera's LCD monitor, an HDMI-connected external recording or monitoring device.

      Uninterrupted 4K 60p recording

      Uninterrupted 4K 60p recording

      For uninterrupted 4K 60p recording, the FX3 features an innovative heat dissipation structure, including a unique Sony Σ (sigma) shaped graphite-alloy heatsink. A complete internal redesign optimised airflow and placement of heatsinks. When required, a silent cooling fan provides ventilation for continuous recording at full resolution, with intake and exhaust air structurally isolated to maintain strong dust and moisture resistance.

      REC lamps and highlighting during video recording

      REC lamps and highlighting during video recording

      There is one tally light on the front and one on the back, and an LED-illuminated REC button on top that works with the tally lights. In addition, by displaying a red frame on the monitor screen during video recording, even if the screen is difficult to see with a rig or gimbal attached, you can immediately confirm recording status. Light operation can be set on or off for specific applications.

      Customisable buttons for professional movie creators

      Customisable buttons for professional movie creators

      The innovative mirrorless design provides mobility alongside uncompromising professional operability. Frequently used controls are positioned on the top surface, and the many customisable keys and menus deliver streamlined workflows in the field. It’s designed for professional results, even when shooting requires one-handed control or challenging shooting angles and lens handling.

      Various zoom operations tailor your expression

      Various zoom operations tailor your expression

      The zoom lever placed at the top of the grip allows operation of power zoom lenses. Additionally, our innovative Clear Image Zoom provides for practical angle of view options even with minimal equipment. Zoom speeds can also be adjusted to suit everything from quick documentary re-framing to purposeful cinematic zooms.

      Cage-free accessory mounting

      Cage-free accessory mounting

      Five 1/4-20 UNC mounting screw holes allow stable attachment of accessories directly to the camera body, without the need for a cage. Three additional mounting holes are also available on the included XLR handle. The result is a system optimised for incredible mobility and hand-held shooting as well as quick setup for fast-moving productions.

      Touch-driven menu with workflow-based navigation

      Touch-driven menu with workflow-based navigation

      Responding to requests from pro photographers and videographers, the menu structure has been designed to make moviemakers’ work more efficient. Menu tabs are on the left side of the display, while parameter groups and parameters related to the selected tab appear on the right. Up to three levels can be displayed together, making the menu structure more clearly visible. Touch-responsive menu operations enable fast, intuitive control.

      Flexible camera positioning with vari-angle monitor

      Flexible camera positioning with vari-angle monitor

      The FX3 is equipped with a horizontally opening vari-angle LCD monitor that is rotatable for precise framing or interesting angles, regardless of whether you are shooting movies hand-held or gimbal mounted. The screen can even be rotated for direct viewing by the subject or when shooting dramatic low angle shots. The 3.0-type, approximately 1.44 million-dot large touch panel LCD has high visibility and clarity.

      Two CFexpress Type A-compatible media slots

      Two CFexpress Type A-compatible media slots

      The camera's two media slots are compatible with CFexpress Type A cards as well as SDXC/SDHC cards supporting UHS-I and UHS-II speed classes. CFexpress Type A cards are the next standard for compact storage with fast write/read speeds suitable for 4K movie recording at high bit rates. Dual slots enable either relay or simultaneous recording.

      Reliable, durable, and lightweight construction

      Reliable, durable, and lightweight construction

      For high durability and mobility, the main camera chassis, top, front, and rear covers are constructed from lightweight and robust magnesium alloy, with the lens mount secured by six screws for stable attachment of heavy lenses. A filter in front of the image sensor oscillates at an ultrasonic frequency of 70,000 cycles per second to remove dust from the sensor surface.

      Reliable durability and weather resistance in tough situations

      Reliable durability and weather resistance in tough situations

      In response to feedback from working professionals, sealing has been applied to all body seams and around the battery and media compartments, terminal covers and chassis joints. All routes for dust and moisture entry have been examined to ensure reliable operation in challenging environments.

      Power for professional length

      Power for professional length

      For extended shooting sessions, the FX3 is compatible with large-capacity NP-FZ100 batteries. USB-PD (Power Delivery) support also enables fast charging or continuous shooting when connected to a compatible USB Type C® power supply or portable powerbank battery.

      Data communications to support on-site workflow

      Data communications to support on-site workflow

      Wireless 5GHz/2.4GHz LAN connections are supported, as are 1000BASE-T Ethernet network connections via a USB-to-Ethernet adaptor cable connected to the camera's USB Type C® terminal supporting SuperSpeed USB 5Gbps (USB 3.2). Remote shooting can be controlled from a PC with Sony's Imaging Edge Desktop™ application, or from a mobile device with Imaging Edge Mobile™. Wired and wireless FTP transfer for data files as well as remote shooting capabilities support professional workflows during shoots.

      Metadata to facilitate editing with Catalyst

      Metadata to facilitate editing with Catalyst

      Sony’s Catalyst Browse and Prepare software are ideal production partners for the FX3. The FX3 records two types of supplementary metadata: image stabilisation and camera rotation. These can be useful when previewing and preparing to edit in Sony’s free Catalyst Browse or cost-effective Catalyst Prepare desktop applications.

  • specifications
    • Specifications

      General

      CAMERA TYPE

      Interchangeable lens digital camera

      LENS MOUNT

      E-mount

      Size & Weight

      WEIGHT (MAIN UNIT ONLY) (approx.)

      Approx. 715 g (1 lb 9.3 oz) (with battery and memory card included), Approx. 640 g (1 lb 6.6 oz) (body only)

      DIMENSIONS (W X H X D) (INCLUDING SUPPLIED ACCESSORIES) (approx.)

      1.015 kg (2 lb 3.8 oz) (with XLR Handle, battery pack, SD card)

      DIMENSIONS (W X H X D) (BODY WITHOUT PROTRUSIONS) (approx.)

      Approx. 129.7 mm x 77.8 mm x 84.5 mm (Approx. 5 1/8 x 3 1/8 x 3 3/8 inches) (body without protrusions)

      Power

      POWER CONSUMPTION

      [Movie] Approx. 7.3W (with FE 28-70mm F3.5-5.6 OSS lens attached), [Still image] Approx. 3.4W (with FE 28-70mm F3.5-5.6 OSS lens attached)

      BATTERY OPERATING TIME

      Approx. 95 min (Actual recording, CIPA standard) , Approx. 135 min (Continuous recording, CIPA standard), Approx. 600 shots (LCD monitor) (still images, CIPA standard)

      Operation

      OPERATING TEMPERATURE

      0°C to 40°C, 32°F to 104°F

      STORAGE TEMPERATURE

      -20°C to +60°C, -4°F to +140°F

      Recording Format (Video)

      XAVC HS

      [XAVC HS 4K] 59.94p/50p 200Mbps/150Mbps/100Mbps/75Mbps/45Mbps, MPEG-H HEVC / H.265, 23.98p 100Mbps/100Mbps/50Mbps/50Mbps/30Mbps, MPEG-H HEVC / H.265, 119.88p/100p 280Mbps/200Mbps, MPEG-H HEVC / H.265

      XAVC S

      [XAVC S 4K] 59.94p/50p 200Mbps/150Mbps, MPEG-4 AVC / H.264, 29.97p/25p 140Mbps/100Mbps/60Mbps, MPEG-4 AVC / H.264, 23.98p 100Mbps/100Mbps/60Mbps, MPEG-4 AVC / H.264,[XAVC S HD] 59.94p/50p 50Mbps/50Mbps/25Mbps, MPEG-4 AVC / H.264, 29.97p/25p 50Mbps/50Mbps/16Mbps, MPEG-4 AVC / H.264, 23.98p 50Mbps/50Mbps, MPEG-4 AVC / H.264, 119.88p/100p 100Mbps/60Mbps, MPEG-4 AVC / H.264

      XAVC S-I

      [XAVC S-I 4K] 59.94p/50p 600Mbps/500Mbps, MPEG-4 AVC / H.264, 29.97p/25p 300Mbps/250Mbps, MPEG-4 AVC / H.264, 23.98p 240Mbps, MPEG-4 AVC / H.264, [XAVC S-I HD] 59.94p/50p 222Mbps/185Mbps, MPEG-4 AVC / H.264, 29.97p/25p 111Mbps/93Mbps, MPEG-4 AVC / H.264, 23.98p 100Mbps/100Mbps/60Mbps, MPEG-4 AVC / H.264, 119.88p/100p 280Mbps/200Mbps, MPEG-4 AVC / H.264

      Recording Format (Audio)

      RECORDING FORMAT (AUDIO)

      LPCM 2ch (48kHz 16bit), LPCM 2ch (48kHz 24bit), LPCM 4ch (48kHz 24bit), MPEG-4 AAC-LC 2ch

      Recording Frame Rate

      XAVC HS

      [XAVC HS 4K] 3840x2160/119.88p,100p,59.94P, 50P, 29.97P, 23.98P, 25P

      XAVC S

      [XAVC S 4K] 3840x2160/119.88p,100p,59.94P, 50P, 29.97P, 23.98P, 25P, [XAVC S-I HD] 1920x1080/59.94P, 50P, 29.97P, 23.98P, 25P

      XAVC S-I

      [XAVC S-I 4K] 3840x2160/59.94P, 50P, 29.97P, 23.98P, 25P, [XAVC S-I HD] 1920x1080/59.94P, 50P, 29.97P, 23.98P, 25P

      Recording/Playback Time

      XAVC HS

      [XAVC HS 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 85 minutes, When using CEA-G80T (80GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 110 minutes, When using CEA-G80T (80GB) Approx. 55 minutes, 59.94p/50p 100M When using CEA-G160T (160 GB) Approx. 170 minutes, When using CEA-G80T (80GB) Approx. 80 minutes, 59.94p/50p 75M When using CEA-G160T (160 GB) Approx. 220 minutes, When using CEA-G80T (80GB) Approx. 100 minutes

      XAVC S

      [XAVC S 4K] 59.94p/50p 200M When using CEA-G160T (160 GB) Approx. 85 minutes, When using CEA-G80T (80GB) Approx. 40 minutes, 59.94p/50p 150M When using CEA-G160T (160 GB) Approx. 110 minutes, When using CEA-G80T (80GB) Approx. 55 minutes, [XAVC S HD] 59.94p/50p 50M When using CEA-G160T (160 GB) Approx. 310 minutes, When using CEA-G80T (80GB) Approx. 150 minutes, 59.94p/50p 25M When using CEA-G160T (160 GB) Approx. 550 minutes, When using CEA-G80T (80GB) Approx. 210 minutes

      XAVC S-I

      [XAVC S-I 4K] XAVC S-I 4K 59.94p/50p When using CEA-G160T (160 GB) Approx. 25 minutes, When using CEA-G80T (80GB) Approx. 10 minutes, [XAVC S-I HD] 59.94p/50p When using CEA-G160T (160 GB) Approx. 75 minutes, When using CEA-G80T (80GB) Approx. 35 minutes

      PROXY VIDEO

      1280 x 720 (Approx. 6Mbps), 1920 x 1080 (Approx. 9Mbps), 1920 x 1080 (Approx. 16Mbps)

      RAW Output

      RAW Output

      HDMI: 4264 x 2408 (60p / 50p / 30p / 25p / 24p), 16bit

      Camera Section

      SENSOR TYPE

      35mm full frame (35.6 x 23.8 mm), Exmor R CMOS sensor

      PIXELS

      Approx. 10.2 megapixels (effective) for movies, Approx. 12.1 megapixels (effective) for Still images, Approx. 12.9 megapixels (total)

      SENSITIVITY

      [Movie] ISO 80-102400 equivalent (ISO numbers up to ISO 409600 can be set as expanded ISO range.), AUTO (ISO 80-12800, selectable lower limit and upper limit), [Still image] ISO 80-102400 (ISO numbers up from ISO 40 to ISO 409600 can be set as expanded ISO range.), AUTO (ISO 80-12800, selectable lower limit and upper limit)

      SHUTTER SPEED

      Movie: 1/8000 to 1/4 (1/3 steps), up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode) Still image: 1/8000 to 30 sec, Bulb

      Slow & Quick Motion

      XAVC HS

      XAVC HS 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps

      XAVC S

      XAVC S 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps

      XAVC S-I

      XAVC S-I 4K: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, XAVC S-I HD: [NTSC mode] 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps, 240fps, [PAL mode] 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps, 200fps

      White Balance

      WHITE-BALANCE MODES

      Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent / Flash / Underwater / Color Temperature (2500 to 9900K) & color filter / Custom

      Gamma

      GAMMA CURVE

      Off / PP1-PP10, Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1-3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset

      Latitude

      Latitude

      15+ stop (S-Log3)

      Focus System

      Type

      Fast Hybrid AF (phase-detection AF / contrast-detection AF)

      FOCUS POINT

      [Movie] 627 points, [Still image] 35mm full frame: 759 points (phase-detection AF)

      SENSITIVITY RANGE

      EV-6 to EV20 (ISO100 equivalent with F2.0 lens attached)

      FOCUS MODE

      [Movie] AF-C, MF, [Still image] AF-A (Automatic AF), AF-S (Single-shot AF), AF-C (Continuous AF), DMF (Direct Manual Focus), Manual Focus

      FOCUS AREA

      [Movie] Wide / Zone / Center / Flexible Spot / Expanded Flexible Spot, [Still image] Wide / Zone / Center / Flexible Spot / Expanded Flexible Spot / Tracking

      OTHER FOCUS FEATURES

      Eye AF ([Movie] Human (Right/Left Eye Select), ([Still image] Human (Right/Left Eye Select) / Animal,),Face detection (Face Priority in AF, Face Priority in Multi Metering, Regist. Faces Priority), [Movie] AF Subj. Shift Sensitivity, [Movie] AF Transition Speed, [Still image] Focus Magnifier (35mm full frame: 2.1x / 4.1x, APS-C: 1.5x / 3.0x)

      Exposure Control

      METERING SENSITIVITY

      EV-3 to EV20 (at ISO100 equivalent with F2.0 lens attached)

      EXPOSURE MODES

      [Movie] Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M) / Flexible Exp. Mode, [Still images] AUTO (iAuto), P, A, S, M

      Recording (Still image)

      RECORDING FORMAT

      JPEG (DCF Ver. 2.0, Exif Ver. 2.32, MPF Baseline compliant), HEIF (MPEG-A MIAF compliant), RAW (Sony ARW 4.0 format compliant)

      IMAGE SIZE

      Image size [3:2] 35mm full frame L: 12M, M: 5.1M, S: 3.0M, APS-C L:5.1M, M: 3.0M, S: 1.3M, Image size [4:3] 35mm full frame L: 11M, M: 4.6M, S: 2.7M, APS-C L: 4.6M, M: 2.7M, S:1.1M Image size, [16:9] 35mm full frame L: 10M, M: 4.3M, S: 2.6M, APS-C L: 4.3M, M: 2.6M, S: 1.1M, Image size [1:1] 35mm full frame L: 8M, M: 3.4M, S: 2.0M, APS-C L: 3.4M, M: 2.0M, S: 0.8M

      Playback

      PLAYBACK FUNCTIONS

      Index view, Folder selection (Date / Still / Movie), Photo capture, 4Ch audio monitoring, Auto Review (stills), Image orientation (stills), Protect (stills), Rating (stills), Display as Group (stills)

      Interface

      AUDIO INPUT

      3.5 mm Stereo minijack, XLR handle: [INPUT1][INPUT2] XLR/TRS-type 3-pin(female) (x2), line/mic/mic +48V selectable, Mic Reference -40 to -60 dBu / [INPUT3] 3.5 mm Stereo minijack)

      USB

      USB Type-C (x1, SuperSpeed USB 5Gbps (USB 3.2) compatible), Multi/Micro USB (x1)

      HEADPHONE OUTPUT

      Yes (3.5 mm Stereo minijack)

      SPEAKER OUTPUT

      Built-in, monaural

      HDMI OUTPUT

      HDMI jack (Type-A), YCbCr 4:2:2 10bit / RGB 8bit

      MULTI INTERFACE SHOE

      With Digital Audio Interface

      Bluetooth

      Bluetooth Standard Ver. 5.0 (2.4GHz band))

      Monitoring

      LCD

      7.5cm (3.0-type) type TFT, approx. 1.44M dots, Opening Angle:Approx. 176 deg., Rotation Angle:Approx. 270 deg.

      Built-in Microphone

      BUILT-IN MICROPHONE

      Built-in, stereo

      Media

      MEDIA TYPE

      CFexpress Type A / SD card (x2), Simult. Rec, Sort, Auto Switch Media, Copy

      File System

      FILE SYSTEM

      FAT12, 16, 32, exFAT

      Zoom

      ZOOM FUNCTION

      Zoom ring rotate, Clear Image Zoom ([Movie] Approx. 1.5x (4K), Approx. 2x (HD) [Still image] Approx. 2x ), Digital zoom ([Movie] 35mm full frame: approx. 4x, APS-C: approx. 4x, [Still image] 35mm full frame: L: approx. 4x, M: approx. 6.1x, S: approx. 8x, APS-C: L: approx. 4x, M:approx. 5.2x, S: approx. 8x), Smart zoom ([Still image] 35mm full frame: M: approx. 1.5x, S: approx. 2x, APS-C: M:approx. 1.3x, S: approx. 2x)

      Still image function

      SHUTTER

      Mechanical shutter / Electronic shutter

      DRIVE MODES

      Single Shooting, Continuous shooting (Hi+/Hi/Mid/Lo selectable), Self-timer, Self-timer (Cont.), Bracket: Single, Bracket: Cont., White Balance bracket, DRO bracket

      CONTINUOUS SHOOTING SPEED

      Hi+: 10 fps, Hi: 8 fps, Mid: 6 fps, Lo: 3 fps

      NOISE REDUCTION

      Long exposure NR: On/Off, available at shutter speeds longer than 1 sec., High ISO NR: Normal / Low / Off

      FLASH CONTROL

      Sony α System Flash compatible with Multi Interface Shoe, attach the shoe adaptor for flash compatible with Auto-lock accessory shoe, Flash sync speed 1/125 sec.

      OTHER STILL IMAGE FUNCTION

      Electronic Front Shutter Curtain, Silent Shooting, Anti-flicker Shoot

      Image Stabilization

      Type

      Image Sensor-Shift mechanism with 5-axis compensation (Compensation depends on lens specifications)

      MODE

      [Movie] Active / Standard / Off, [Still image] On / Off

      COMPENSATION EFFECT (STILL IMAGES)

      5.5 stops (based on CIPA standard. Pitch/yaw shake only. With Planar T* FE 50mm F1.4 ZA lens mounted. Long exposure NR off.)

      Custom Function

      CUSTOM FUNCTION

      Custom key settings, My Menu, My Dial Settings

      Lens Compensation

      LENS COMPENSATION

      Peripheral Shading, Chromatic Aberration, Distortion

      Wi-Fi/NFC

      SUPPORTED FORMAT

      IEEE 802.11a/b/g/n/ac

      FREQUENCY BAND

      2.4GHz band/5GHz band

      SECURITY

      WEP/WPA-PSK/WPA2-PSK

      NFC

      NFC Forum Type 3 Tag compliant

      FTP Transfer

      FTP Transfer

      FTP Transfer Func. (Wired LAN (USB-LAN), USB Tethering, Wi-Fi)

      Supplied Accessories

      SUPPLIED ACCESSORIES

      Rechargeable Battery NP-FZ100, Battery Charger BC-QZ1, Power cord, XLR handle unit, Accessory shoe kit, Body cap, Accessory shoe cap, Handle shoe cap, USB-A to USB-C cable (USB 3.2)

  • Reviews
    • Reviews
  • Support
